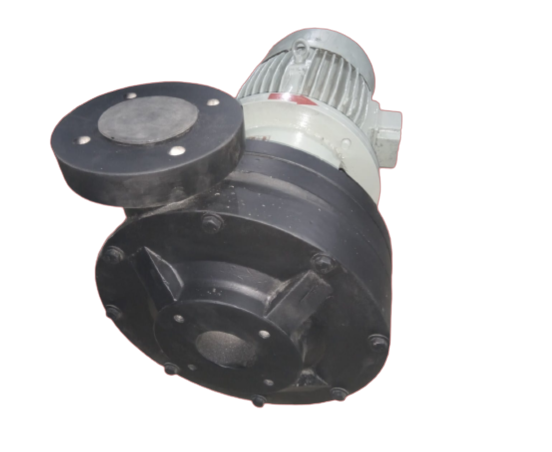

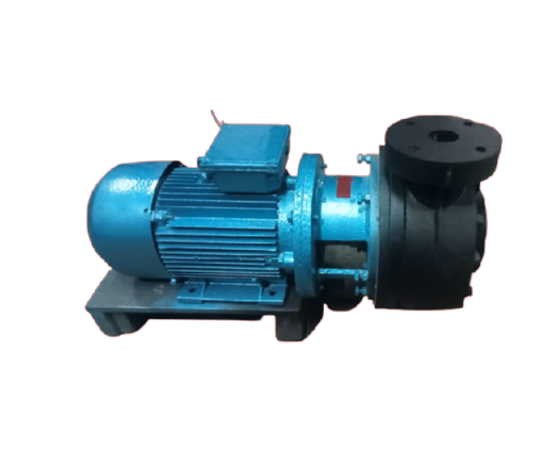

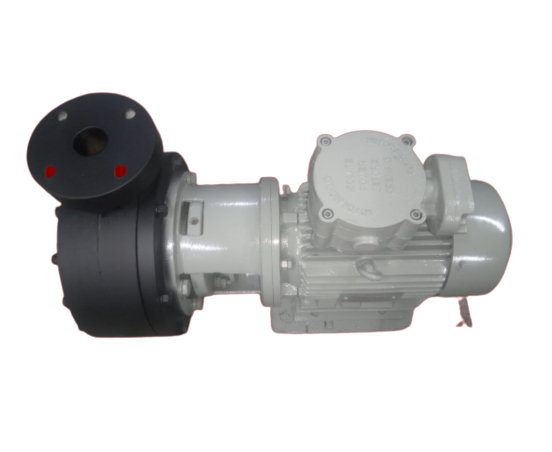

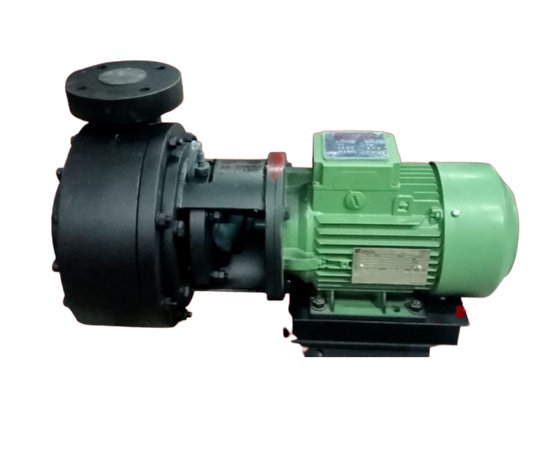

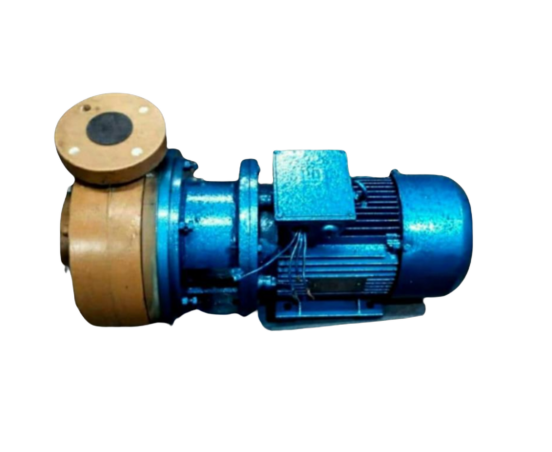

Your age old robust & corrosion resistant RESICAST Silica Epoxy & Graphite pump now available in monoblock version as well. No more alignment problems, fewer part count coupled with best in class efficiency delivers a lowest total cost of ownership non metallic pump in the industry

Design Features

RESICAST type designed specifically for corrosive chemical service. Capacities up to 100 m3/hr. Total Head up to 50 meters. Temperatures up to 130 Deg C(depending up fluid & concentration)

Casing & Backplate

Heavy Silica Epoxy construction without any MS plate to support makes it suitable for corrosive duty.

Impeller

Standard Semi Open & Close type impeller cast integral with shaft & hence chances of joints being corroded is eliminated and is directly attached on motor shaft. All parts of the impeller coming in contact with service fluid are silica EPOXY , damage due to reverse rotation is eliminated. Options for sleeves also available on customer request.

RESICAST Advantage

Highly engineered composite pump, we have developed a special "Polymer Concrete '' / "Ceramic" epoxy silica composite & are the one of the oldest & only manufacturers of such pumps in the country .

Unmatched mechanical strength & wear resistance in non metallic pumps ensures your pumps have longer life similar to metallic pumps. We use novolac thermoset resins used in demanding applications like ship propellers & aerospace structures.

Highest efficiency in non metallic pumps: Lower coefficient of thermal expansion of epoxy leading to smaller clearances & custom molding/machining (not mass production of standard casings) ensures that we deliver up to 20% higher efficiency then most thermoplastic (PP, PVDF, PFA) pumps in the market. Upon replacement with Resicast pump you can recover your investment in 6-12 months.

Breakthrough design with fewer parts: Integral molded single piece shaft impeller, no separate liner concern, no separate impeller lock nut, gasket, no need for a separate shaft sleeve. Total part count ½ of other pumps in the market. Easy maintenance coupled with modular design for component interchangeability ensure lower spares inventory & no need for skilled fitters
