Mechanical Seals
Features

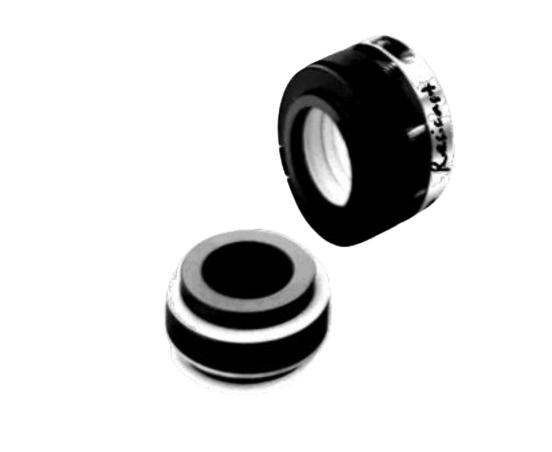

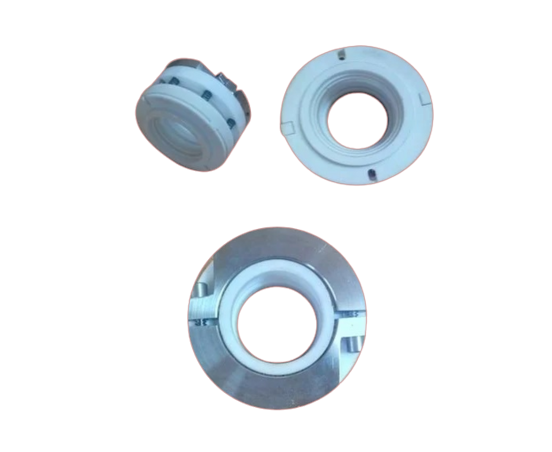

Designed for heavy duty Resicast Pumps this is an outside mounted seal. With a dual direction multi spring design this seal is hydraulically balanced and has an independent direction of rotation. Replaceable face ensures that the customers can repair & maintain the seal & not have to replace the complete seal in event of the face failure. Developed & tested specifically for Resicast pumps this seal assures you lower downtime, longer life not only of the seal but also of the impeller due to low heating & gives customer a leakproof operation with lower total cost of ownership.
- Seal Rings Faces: GFT, Carbon & SiC
- Seat Faces: Ceramic & SiC
- Elastomer: PTFE & GFT
- MOC: SS 316. Hast -C and Alloy 20
- Bellow MOC: PTFE +GFT Composite
Material Of Construction
- Shaft Dia: 10mm to 100 mm
- Pressure: Up to 20 bar
- Temperature: -20 to 260 dec C
- Speed: 3000 rpm
